Container Specifications

Information related to container specification is very important for clients. The dimension of different containers tends to vary slightly. It is best to refer to the right container with precise speculations before ordering a shipment.

Containers are classified into different categories, such as:

• Standard container
• Upgraded container
• Reefer container
• Open top
• Flat rack
• Flat rack collapsible
• Platform

There are different size specifications for each of these containers that should be considered before placing a shipment order.

Dry Cargo Container

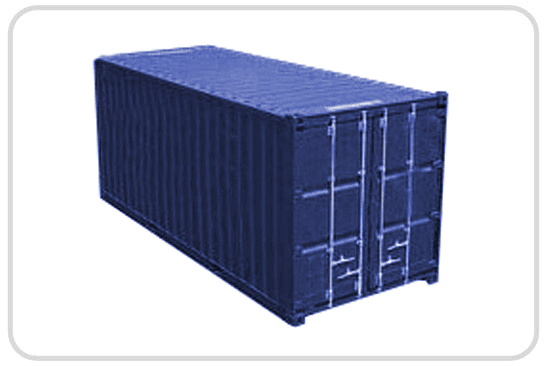

20' Steel Dry Cargo Container



Exterior				Weight			Door Opening
Length	Width	Height		MGW	TARE	NET	Width	Height
20'-0"	8'-0"	8'-6"		52,910 lb	5,140 lb	47,770 lb	7'-8 1/8"	7'-5 3/4"
6.058 m	2.438 m	2.591 m		67,200 lb	5,290 lb	61,910 lb	2.343 m	2.280 m
Interior				24,000 kg	2,330 kg	21,670 kg	CU.M	CU.FT
19'-4 13/16"	7'-8 19/32"	7'-9 57/64"		30,480 kg	2,400 kg	28,080 kg	33.1	1,169
5.898 m	2.352 m	2.385 m		Purpose: Captioned units(MGW 30,480 KG) can be coordinated from EMCU 3204073 and EISU 3568118. Used for all kinds of general cargo.

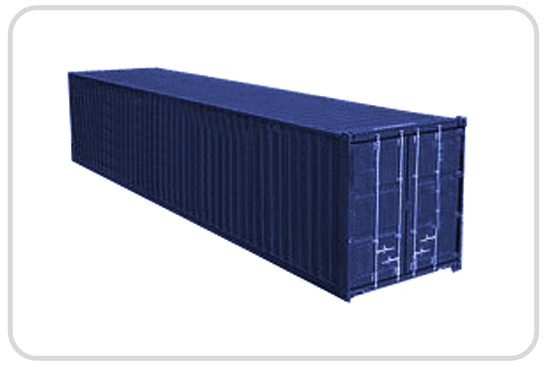

40' Steel Dry Cargo Container



Exterior				Weight			Door Opening
Length	Width	Height		MGW	TARE	NET	Width	Height
40'-0"	8'-0"	8'-6"		67,200 lb	8,820 lb	58,380 lb	7'-8 1/8"	7'-5 3/4"
12.192 m	2.438 m	2.591 m					2.343 m	2.280 m
Interior				30,480 kg	4,000 kg	26,480 kg	CU.M	CU.FT
39'-5 45/64"	7'-8 19/32"	7'-9 57/64"					67.5	2,385
12.032 m	2.352 m	2.385 m		Purpose: Used for all kinds of general cargo.

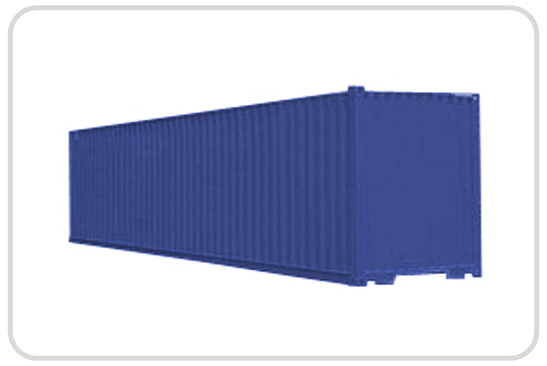

40' Hi-Cube Steel Dry Cargo Container



Exterior				Weight			Door Opening
Length	Width	Height		MGW	TARE	NET	Width	Height
40'-0"	8'-0"	9'-6"		67,200 lb	9,260 lb	57,940 lb	7'-8 1/8"	8'-5 49/64"
12.192 m	2.438 m	2.896 m					2.343 m	2.585 m
Interior				30,480 kg	4,200 kg	26,280 kg	CU.M	CU.FT
39'-5 45/64"	7'-8 19/32"	8'-9 15/16"					76.2	2,690
12.032 m	2.352 m	2.69 m		Purpose: Used for all kinds of general cargo.

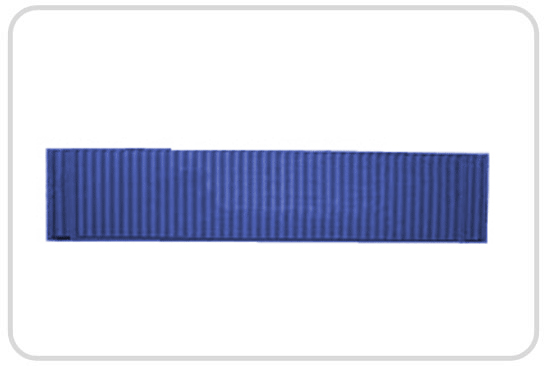

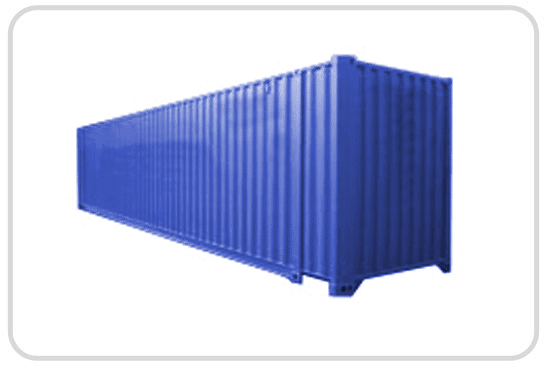

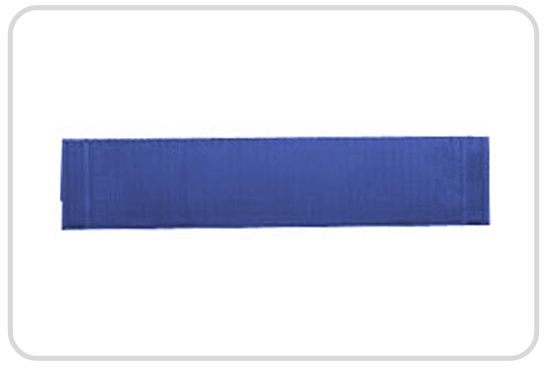

45' Hi-Cube Steel Dry Cargo Container







Exterior				Weight			Door Opening
Length	Width	Height		MGW	TARE	NET	Width	Height
45'-0"	8'-0"	9'-6"		67,200 lb	10,580 lb	56,620 lb	7'-8 1/8"	8'-5 3/4"
13.716 m	2.438 m	2.896 m					2.340 m	2.585 m
Interior				30,480 kg	4,000 kg	26,480 kg	CU.M	CU.FT
44'-5 7/10''	7'-8 19/32''	8'-10 17/64''					86.1	3,040
12.032 m	2.352 m	2.385 m		Purpose: Used for all kinds of general cargo.



Exterior				Weight			Door Opening
Length	Width	Height		MGW	TARE	NET	Width	Height
45'-0"	8'-0"	9'-6"		67,200 lb	10,858 lb	56,342 lb	7'-8 1/8"	8'-5 3/4"
13.716 m	2.438 m	2.896 m					2.340 m	2.585 m
Interior				30,480 kg	4,870 kg	25,610 kg	CU.M	CU.FT
44'-5 7/10''	7'-8 19/32''	8'-10 17/64''					86	3,040
13.556 m	2.352 m	2.698 m		Purpose: Captioned units can be coordinated from EISU 804001~EISU 804500 and EMCU 801001~EMCU 80250.



Exterior				Weight			Door Opening
Length	Width	Height		MGW	TARE	NET	Width	Height
45'-0"	8'-0"	9'-6"		71,650 lb	10,360 lb	61,290 lb	7'-8"	8'-6"
13.716 m	2.438 m	2.896 m					2.340 m	2.585 m
Interior				32,500 kg	4,700 kg	27,800 kg	CU.M	CU.FT
44'-5 7/10''	7'-8 19/32''	8'-10 17/64''					86	3,040
13.556 m	2.352 m	2.698 m		Purpose: Captioned units can be coordinated from EISU 802001~EISU 804000.



Refrigerated Container

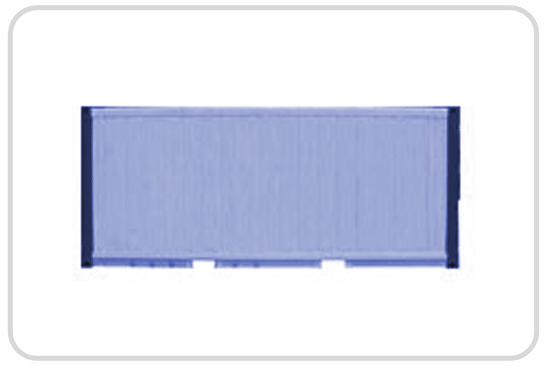

20' M.G.S.S. Refrigerated Container



Exterior				Nominal				Weight
Length	Width	Height		Cubic Capacity				MGW	TARE
20'-0"	8'-0"	8'-6"		1006 cu.ft.				67,180 lb	6,700 lb
6.058 m	2.438 m	2.591 m						30,480 kg	3,040 kg
Interior				28.5 cu.m.				CU.M	CU.FT
18'- 17/32"	7'-6 15/32"	7'-5 39/54"						28.8	1,016
5.5 m	2.298 m	2.276 m		Cooling capacity	Air exchange rate		Type			Temp. control precision
				w(kcal)/C(F)	CFM	cu.m/hr
				11,000(9,460)/1.7(35) 6,280(5,400)/-18(0)	0-106	0-180	MHI CPE14-2BAIIIEU			+-0.25C
				10,550(9,073)/2(35) 6,150(5,289)/-18(0)	0-142	0-240	CARRIER 69NT40-551-501			+-0.25C
				Purpose: Used for all kinds of general cargo.

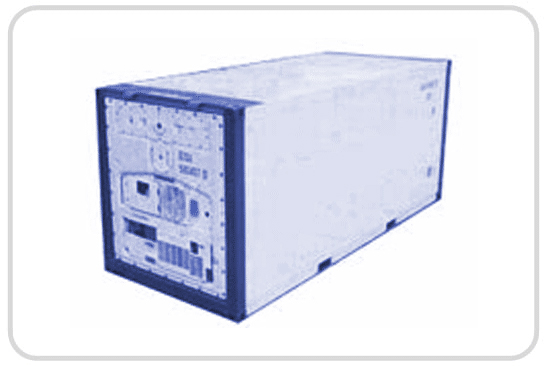

20' Aluminum Refrigerated Container



Exterior				Nominal				Weight
Length	Width	Height		Cubic Capacity				MGW	TARE
20'-0"	8'-0"	8'-6"		978.46 cu.ft.				52,800 lb	6,314 lb
6.058 m	2.438 m	2.591 m						24,000 kg	2,870 kg
Interior				27.72 cu.m.				CU.M	CU.FT
17'-9 15/16"	7'-6"	7'-3.63/64"						27.72	978.46
5.543 m	2.286 m	2.235 m		Cooling capacity	Air exchange rate		Type			Temp. control precision
				w(kcal)/C(F)	CFM	cu.m/hr
				11,000(9,460)/1.7(35) 6,280(5,400)/-18(0)	0-106	0-180	MHI CPE14-2BAIIIEU			+-0.25C

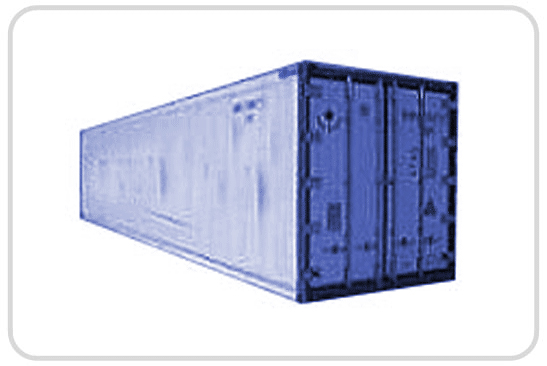

40' M.G.S.S. Hi-Cube Refrigerated Container



Exterior				Nominal				Weight
Length	Width	Height		Cubic Capacity				MGW	TARE
40'-0"	8'-0"	9'-6"		2,390 cu.ft.				74,960 lb	9,150 lb
12.192 m	2.438 m	2.896 m						34,000 kg	4,150 kg
Interior				67.70 cu.m.				CU.M	CU.FT
37'-11 55/64"	7'-6 15/32"	8'-4 5/32"						67.7	2,390
11.579 m	2.298 m	2.544 m		Cooling capacity	Air exchange rate		Type			Temp. control precision
				w(kcal)/C(F)	CFM	cu.m/hr
				11,000(9,460)/1.7(35) 6,280(5,400)/-18(0)	0-106	0-180	MHI CPE16-2BAIIIEV			+-0.25C
				10,550(9,073)/2(35) 6,150(5,289)/-18(0)	0-142	0-240	CARRIER 69NT40-551-501			+-0.25C

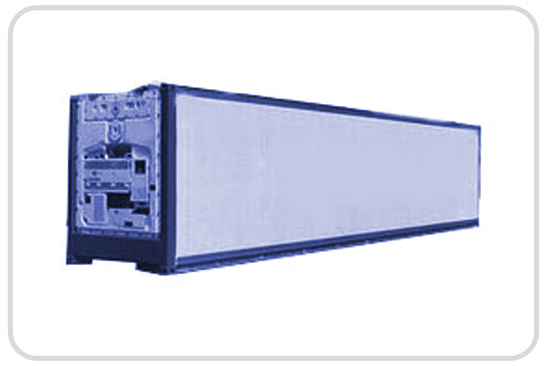

40' Hi-Cube Aluminum Refrigerated Container



Exterior				Nominal				Weight
Length	Width	Height		Cubic Capacity				MGW	TARE
40'-0"	8'-0"	9'-6"		2351 cu.ft.				67,200 lb	9,480 lb
12.192 m	2.438 m	2.896 m						30,480 kg	4,300 kg
Interior				66.58 cu.m.				CU.M	CU.FT
38'-1 13/32"	7'-6"	8'-2 23/32"						66.6	2,351
11.618 m	2.286 m	2.507 m		Cooling capacity	Air exchange rate		Type			Temp. control precision
				w(kcal)/C(F)	CFM	cu.m/hr
				11,000(9,460)/1.7(35) 6,280(5,400)/-18(0)	0-106	0-180	MHI CPE14-2BAIIIA/ES			+-0.25C



Special Container

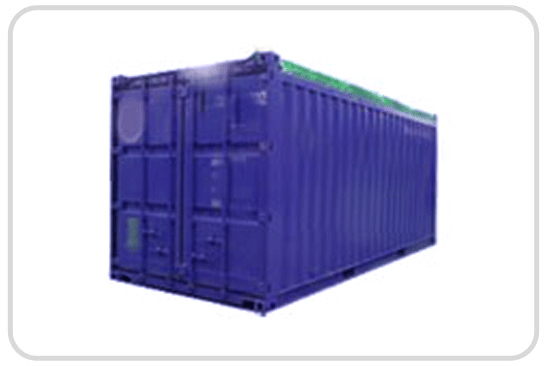

20' Full Height Open Top Container





Exterior				Weight			Door Opening
Length	Width	Height		MGW	TARE	NET	Width	Height
19'-10 1/2"	8'-0"	8'-6"		52,910 lb	5,310 lb	47,600 lb	7'-8 1/4"	7'-4 31/32"
6.058 m	2.438 m	2.591 m		24,000 kg	2,410 kg	21,590 kg	2.343 m	2.260 m
Interior				CU.M			CU.FT
19'-4 13/64"	7'-8 19/32"	7'-7 11/16"		32.5			1,148
5.898 m	2.352 m	2.329 m		Purpose: Captioned units can be coordinated from UGMU 490001~UGMU 490150 and EMCU 460161~EMCU 460520.



Exterior				Weight			Door Opening
Length	Width	Height		MGW	TARE	NET	Width	Height
20'-0"	8'-0"	8'-6"		67,200 lb	5,140 lb	62,060 lb	7'-8 3/10"	7'-6"
6.058 m	2.438 m	2.591 m		30,480 kg	2,330 kg	28,150 kg	2.340 m	2.280 m
Interior				CU.M			CU.FT
19'-4 4/5"	7'-8 4/5"	7'-8 3/5"		32.5			1,148
5.898 m	2.352 m	2.348 m		Purpose: Captioned units can be coordinated from EISU 460001 to EISU 460400.



20 ' Flat Rack Container with Four Freestanding Posts



Exterior
Length	Width	Height
20'-0"	8'-0"	8'-6"
6.058 m	2.438 m	2.591 m
Interior
18'-6 7/16"	6'-7 59/64"	6'-9 39/64"
5.650 m	2.030 m	2.073 m
Weight
MGW	TARE	NET
66,140 lb	6,150 lb	59,990 lb
30,000 kg	2,790 kg	27,210 kg
Purpose: Captioned units can be coordinated from EMCU 760321~EMCU 760520.

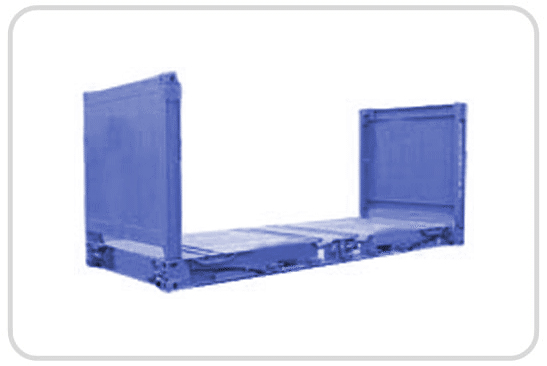

20' Flat Rack Container with Collapsible End



Exterior
Length	Width	Height
20'-0"	8'-0"	8'-6"
6.058 m	2.438 m	2.591 m
Interior
18'-5 31/32"	7'-3 23/32"	7'-3 59/64"
5.638 m	2.228 m	2.233 m
Weight
MGW	TARE	NET
74,950 lb	6,370 lb	68,580 lb
34,000 kg	2,890 kg	31,110 kg
Purpose: Captioned units can be coordinated from EISU 750000 to EISU 750300.

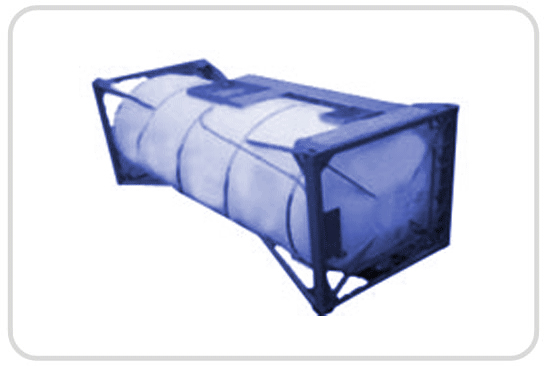

20' Fuel Tank Container



Exterior
Length	Width	Height
20'-0"	8'-0"	8'-6"
6.058 m	2.438 m	2.591 m
Weight
MGW	TARE	NET
36,000 kg	3,385 kg	32,615 kg
Capacity
24,000 litres
Design Temp.
-20°C to 130°C
Purpose : Captioned units can be coordinated from EISU 8010010 to EISU 8010453, and are need for power pack generators equipped on group vessels, not for export or import purpose.

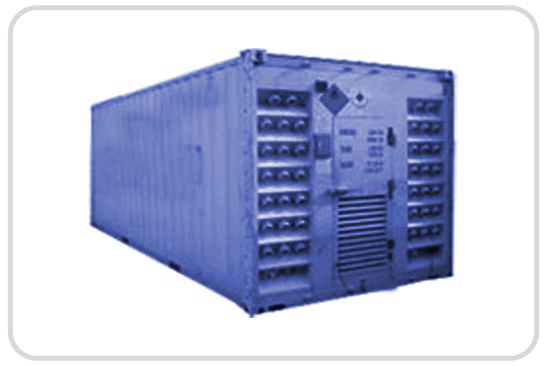

20' Power Pack Generator Container



Exterior
Length	Width	Height
20'-0"	8'-0"	8'-6"
6.058 m	2.438 m	2.591 m
Interior
19'-4 13/16"	7'-8 19/32"	7'-9 57/64"
5.898 m	2.352 m	2.385 m
Weight
MGW	TARE	NET
8,500 kg	2,400 kg	6,100 kg
Power Supply
450 kw
Socket
40
Purpose : Captioned units can be coordinated from EMCU 0000013 to EMCU 0000409.

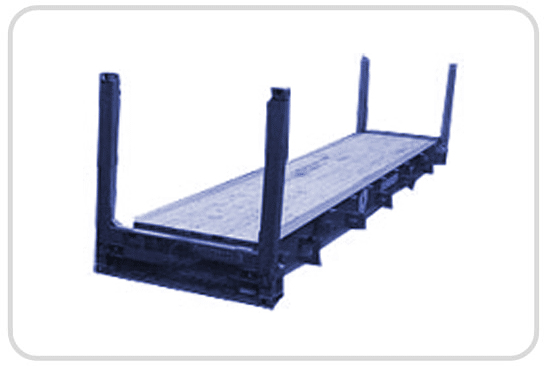

40' Flat Rack Container with Four Freestanding Posts



Exterior
Length	Width	Height
40'-0"	8'-0"	8'-6"
12.192 m	2.438 m	2.591 m
Interior
38'-7 15/16"	6'-7 59/64"	6'-4 1/2"
11.784 m	2.030 m	1.943 m
Weight
MGW	TARE	NET
99,210 lb	11,908 lb	87,302 lb
45,000 kg	5,400 kg	39,600 kg
Purpose: Captioned units can be coordinated from UGMU 707001~UGMU 707050; EMCU 700251~EMCU 700450.

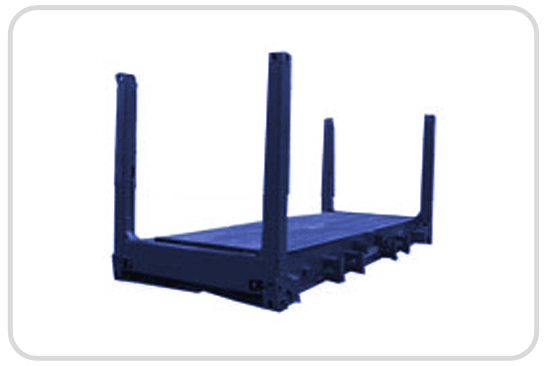

40' Flat Rack Container with Collapsible End



Exterior
Length	Width	Height
40'-0"	8'-0"	8'-6"
12.192 m	2.438 m	2.591 m
Interior
38'-7 39/64"	7'-3 23/32"	6'-4 61/64"
11.752 m	2.374 m	1.955 m
Weight
MGW	TARE	NET
99,210 lb	10,800 lb	89,410 lb
45,000 kg	4,900 kg	40,100 kg
Purpose: Captioned units can be coordinated from EISU 710000~EISU 710500.

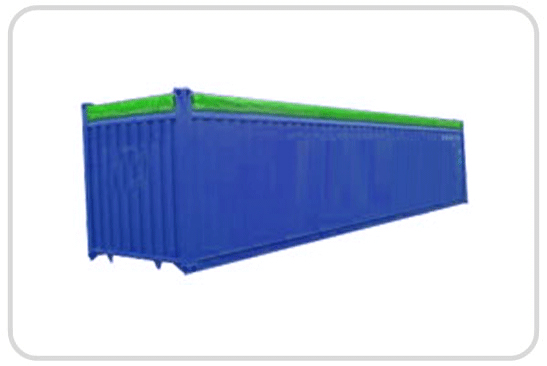

40' Full Height Open Top Container



Exterior
Length	Width	Height
40'-0"	8'-0"	8'-6"
12.192 m	2.438 m	2.591 m
Interior
39'-7"	7'-8 9/10"	7'-8 3/5"
12.032 m	2.352 m	2.348 m
Weight
MGW	TARE	NET
67,200 lb	9,499 lb	57,701 lb
30,480 kg	4,300 kg	26,180 kg
CU.M
65.9
CU.FT
2,327
Purpose: Captioned units can be coordinated from EMCU 400362~EMCU 400601, UGMU 407001~UGMU 407050 and EISU 400001~EISU 400600.

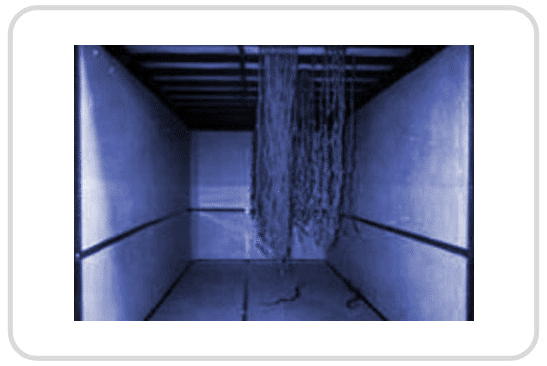

40' Hi-Cube Hanger Container



Exterior
Length	Width		Height
40'-0"	8'-0"		9'-6"
12.19 m	2.44 m		2.90 m
Interior
39'-5 45/64"	7'-8 19/32"		8'-9 15/16"
12.03 m	2.35 m		2.69 m
Weight
MGW	TARE		NET
67,200 lb	9,172 lb		58,028 lb
30,480 kg	4,200 kg		26,280 kg
Door Opening
Width		Height
7'-8 1/8"		8'-5 49/64"
2.343 m		2.585 m
Purpose: Used for all kinds of garment.



* The Listed statues are for customers' easy reference only. Before picking up requested containers, please contact the assigned sales person in order to confirm required specification.

* The specifications listed above are for indication purpose only. Please always refer to the container right door for actual specifications.
